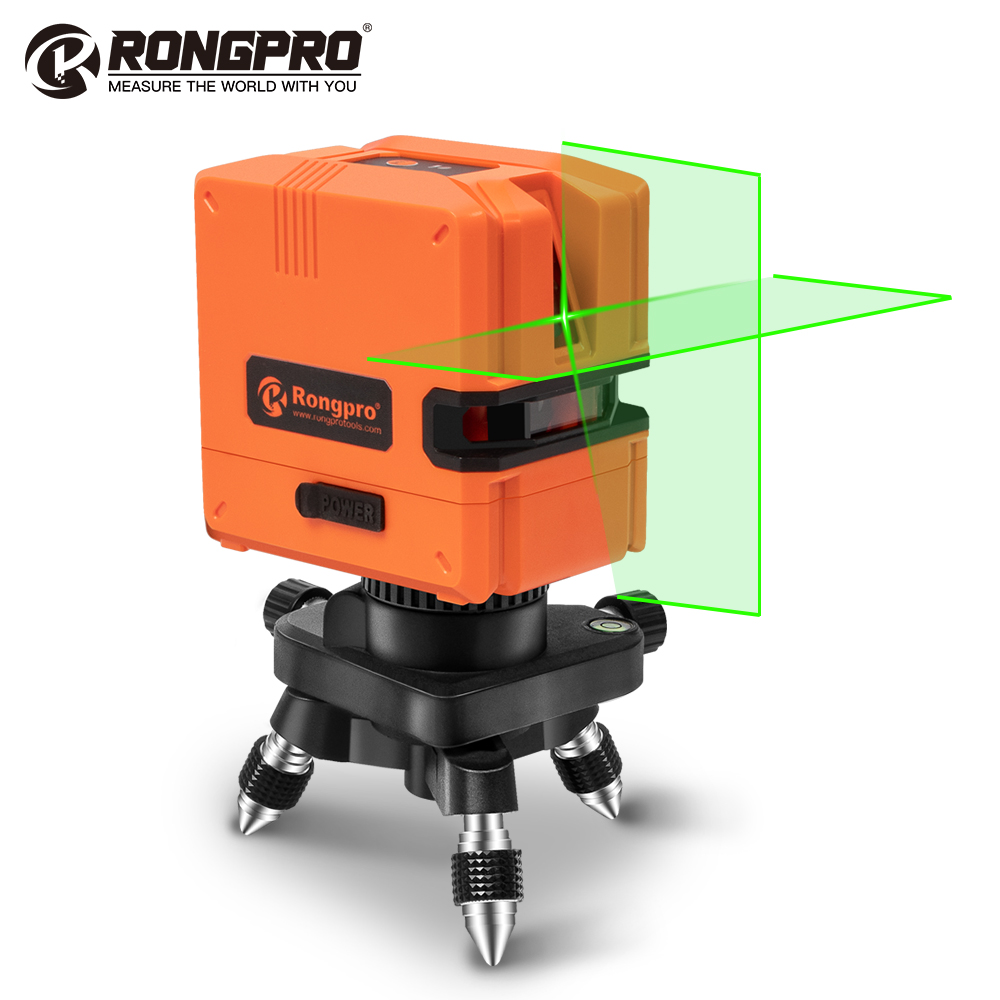

2-Line Laser Level 88203

Large elevation angle self-leveling green laser level specifications:

● Laser beam: green light

● Projection: 2 green laser lines

● Laser class: Class II (IEC/EN60825-1/2014),<1mW power output

●Laser wavelength: 515-520nm

● Horizontal/vertical accuracy: ±3mm/10m

● Leveling/compensation range: 3.5°±0.5°

● Leveling time: 3s

● Working distance: 20m

● Working time and power supply: 10 hours built-in lithium-ion battery 3.7V / 5000mAh

                                                        4 hours dry battery 3*AA (with battery compartment but no battery)

● Installation size: 1/4"

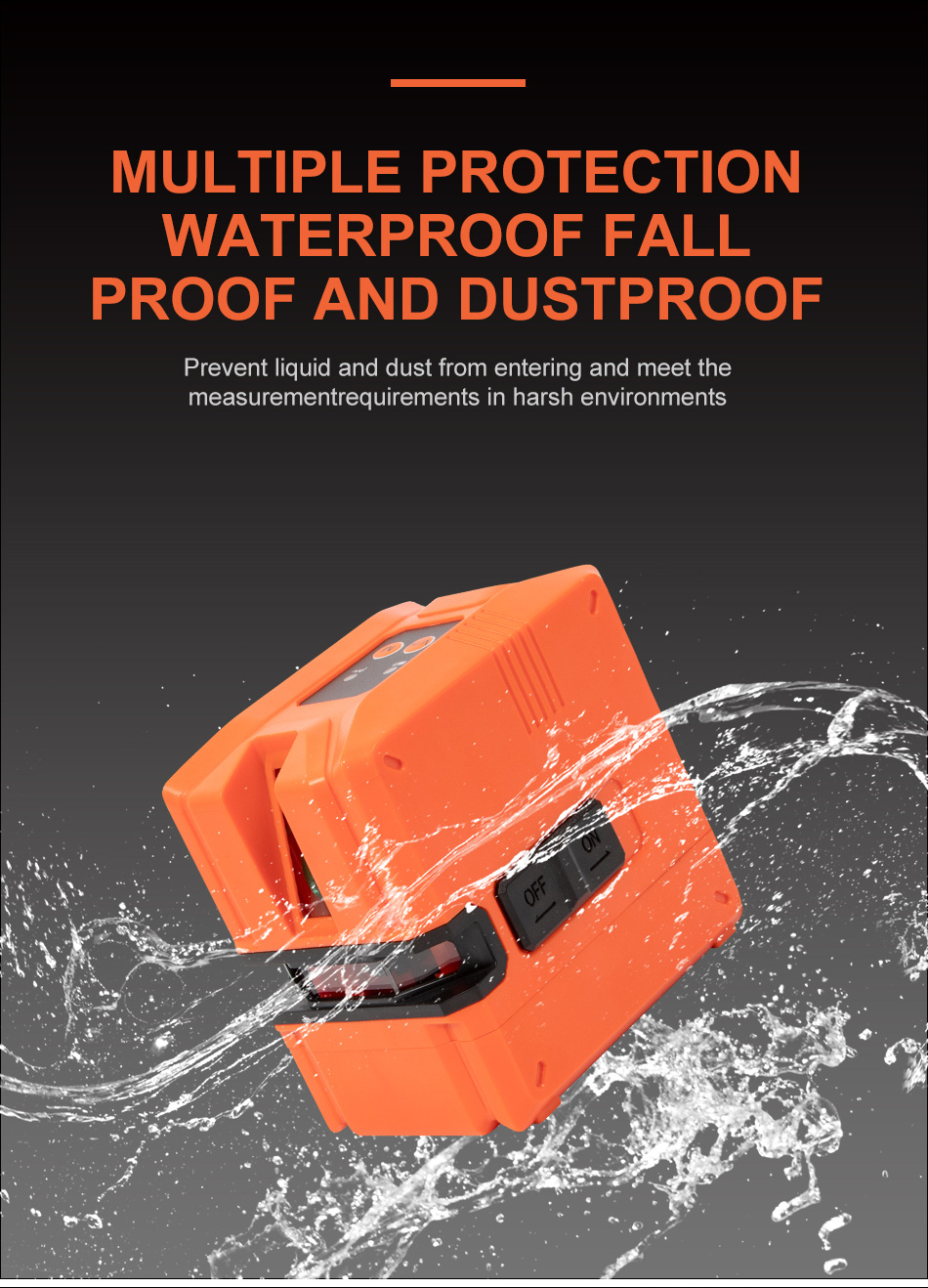

● IP rating: IP56, waterproof, dustproof, shockproof, reliable and sturdy

● Working temperature: -10℃ to +50℃

● Storage temperature: -20℃ to +70℃

warn:

● Do not point the laser beam directly at the eyes.

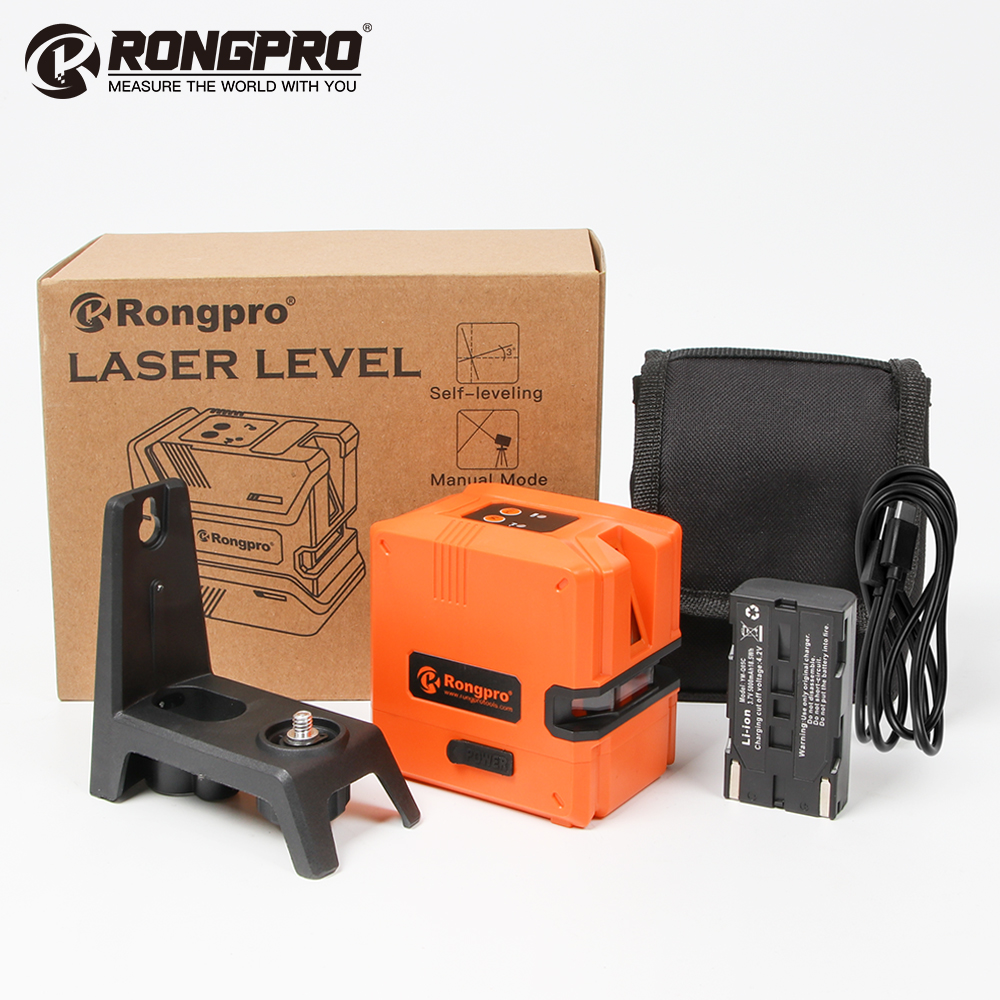

Package Contents:

With lithium battery content

1 x Green Laser Level 88203

1 x data cable

1 x lithium battery

1 x L-shaped magnetic swivel base

1 carrying bag

1 x multi-language user manual

Without Lithium battery content

1 x Green Laser Level 88203

1 x battery box

1 x L-shaped magnetic swivel base

1 x carrying bag

1 x multi-language user manual

Self-leveling mode:

Auto-leveling mode is enabled when the laser tool is switched to the unlocked position.

The laser beam will flash when the tool exceeds the self-leveling range by 3.5° ± 0.5°.

Manual mode:

In the off state, long press the V/H key for 3 seconds to turn on the slash function and project

non-horizontal straight lines. The laser beam will flash every 3-5 seconds to remind you that it is

not auto-leveling.

Three-line switching function:

Each time you press the power button, the laser tool projects vertical lines, horizontal lines,

and cross lines in sequence.

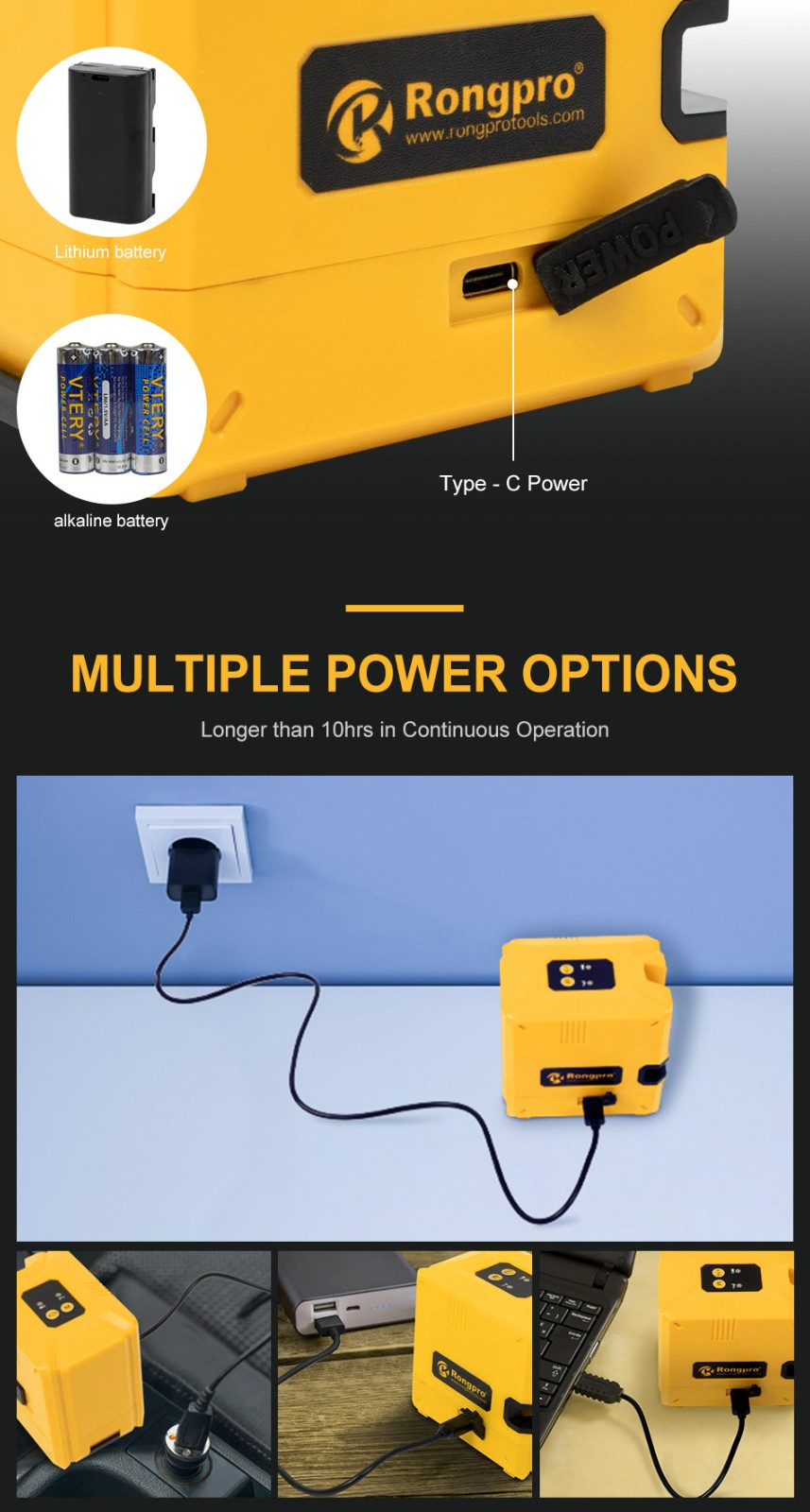

Built-in rechargeable lithium battery:

3.7V/5000mAh Li-ion battery: Provides up to 10 hours of continuous power when fully charged.

Type-C charging port: The laser level can be charged through laptops, power banks, car chargers,

etc. With battery protection, you can charge the laser tool using your Android phone’s charging

cable and adapter.

Warning:

When using dry batteries, do not connect data cables to prevent explosion!
